Workshop Day Overview (V8)
The day overview provides a clear overview of all work orders scheduled and assigned for today. Mechanics can instantly see their scheduled tasks on their tablets, eliminating the need to walk to the planning board.
Access
Option 1

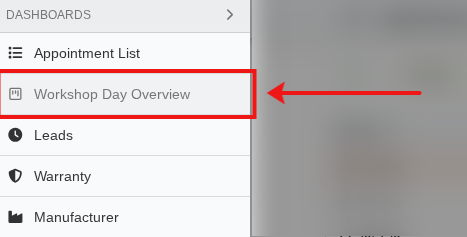

Once the day overview is enabled at your location, you can access it by selecting Workshop Day Overview from the left-hand menu.
Option 2

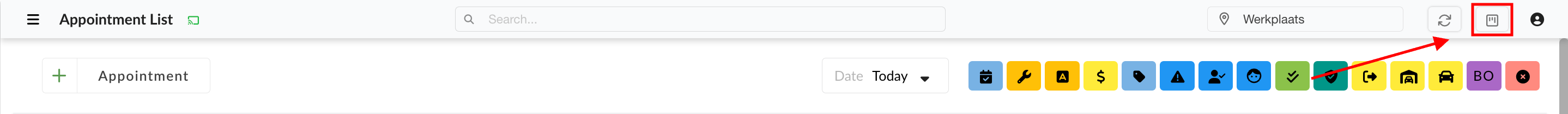

Click on the following shortcut in the Appointment list to open the day overview:
The day overview is not enabled by default. Please contact support@claireit.eu to activate this feature.

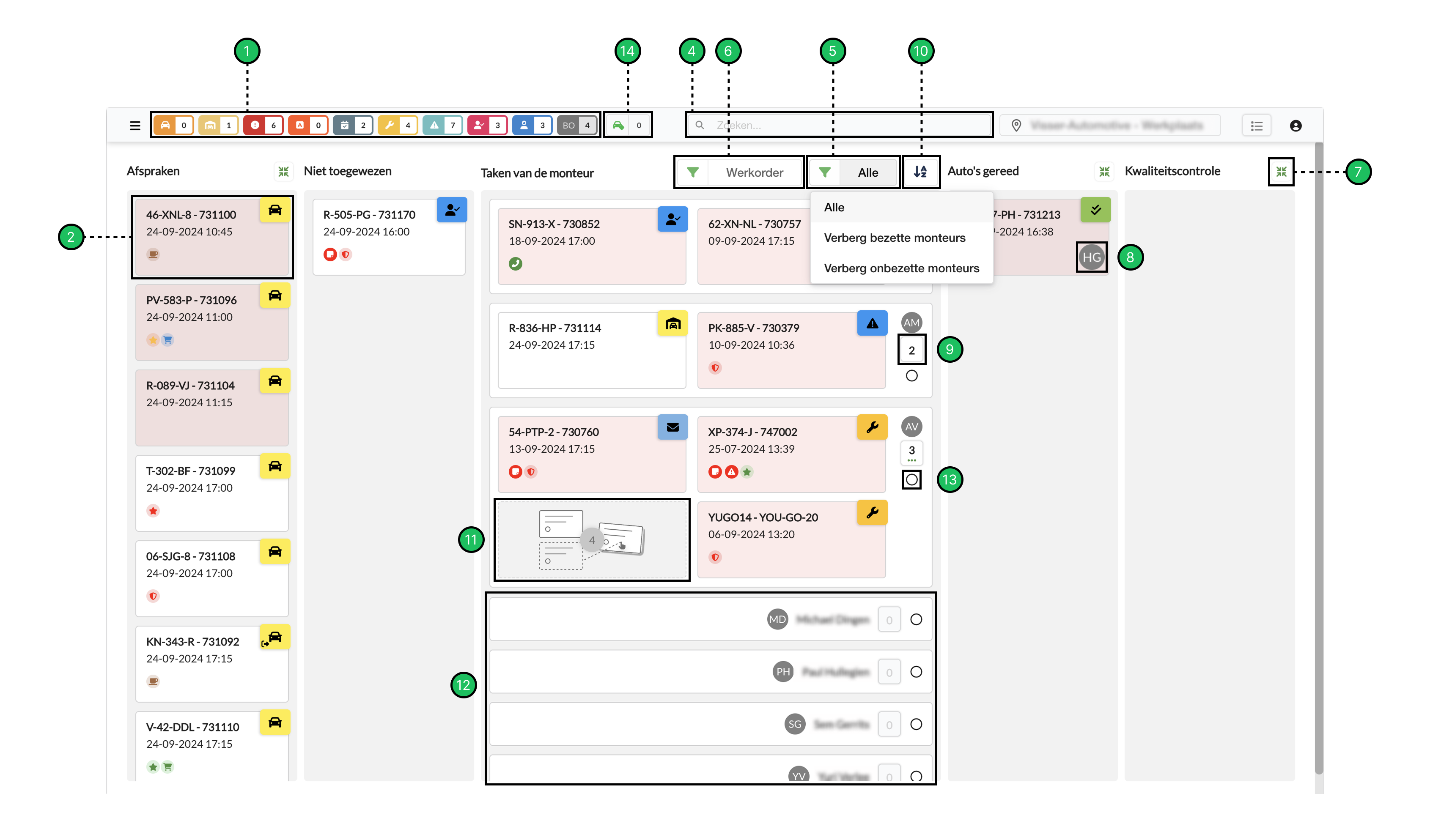

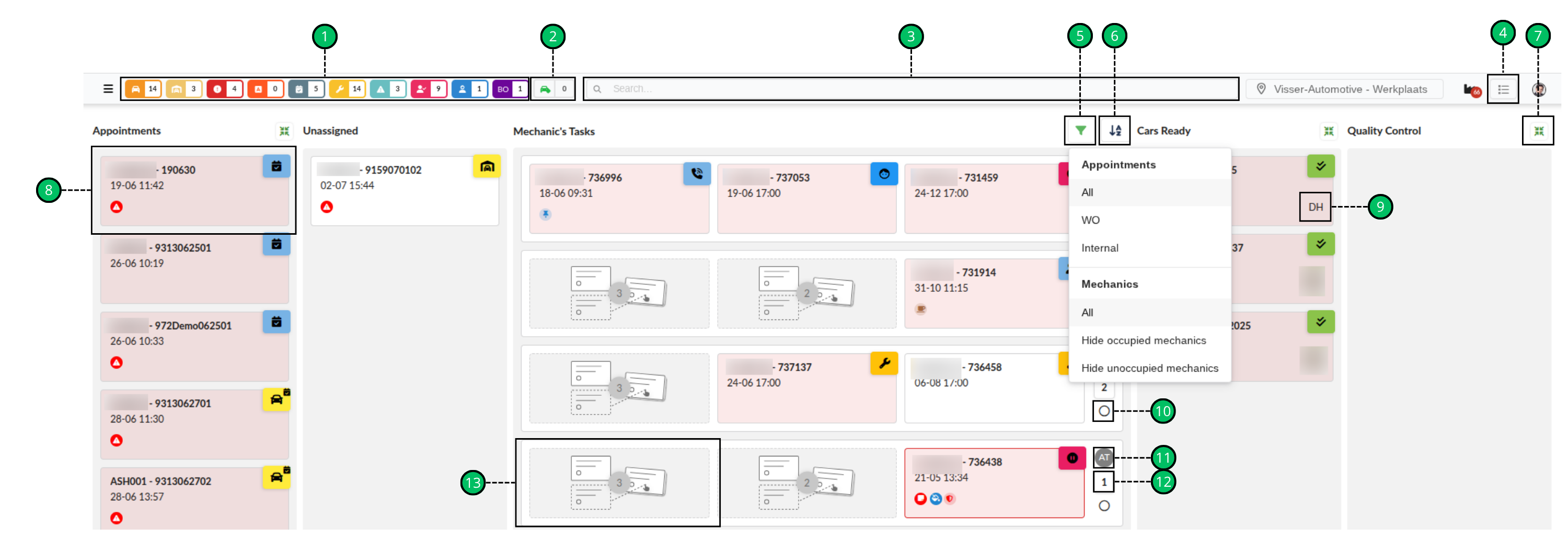

Legend
Number | Name | Description | Link to related article |
1 | Status bar | A bar with status icons showing the number of appointments for each status. Clicking on a status icon hides work orders with this status. | |
2 | Appointments | The appointment typically displays the registration number, WO number, and a date and time. The date and time are based on the first available data from:
The color of the box indicates the following:
When the mechanic clicks "I need help," a red border appears around the appointment. Hovering over it will display the help note. | |
Third-party info | If your location is connected to a third party such as Plan-IT and 1iAutomotive, the WO (work order) will show a circle with the initial of the assigned mechanic. | ||

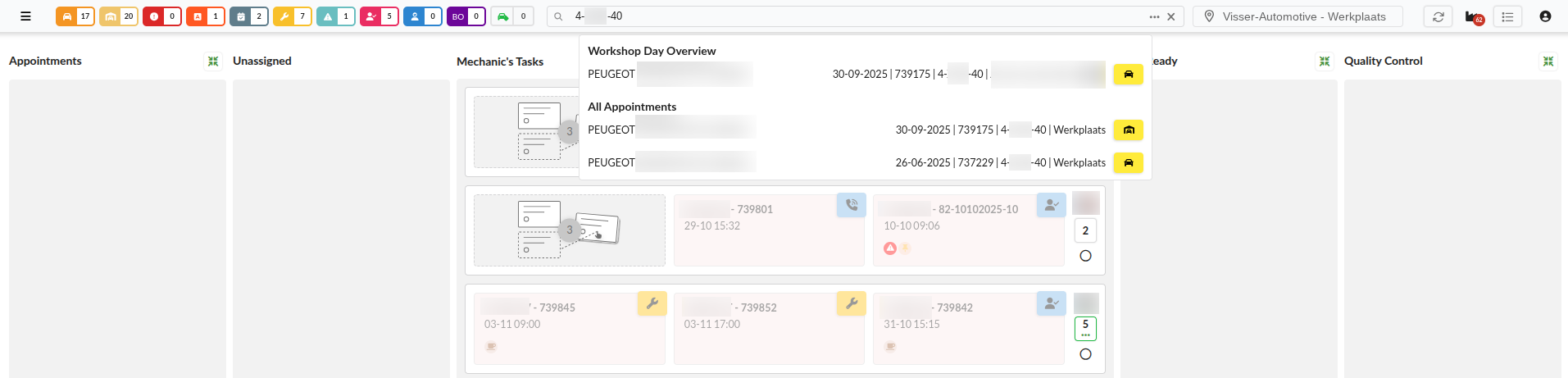

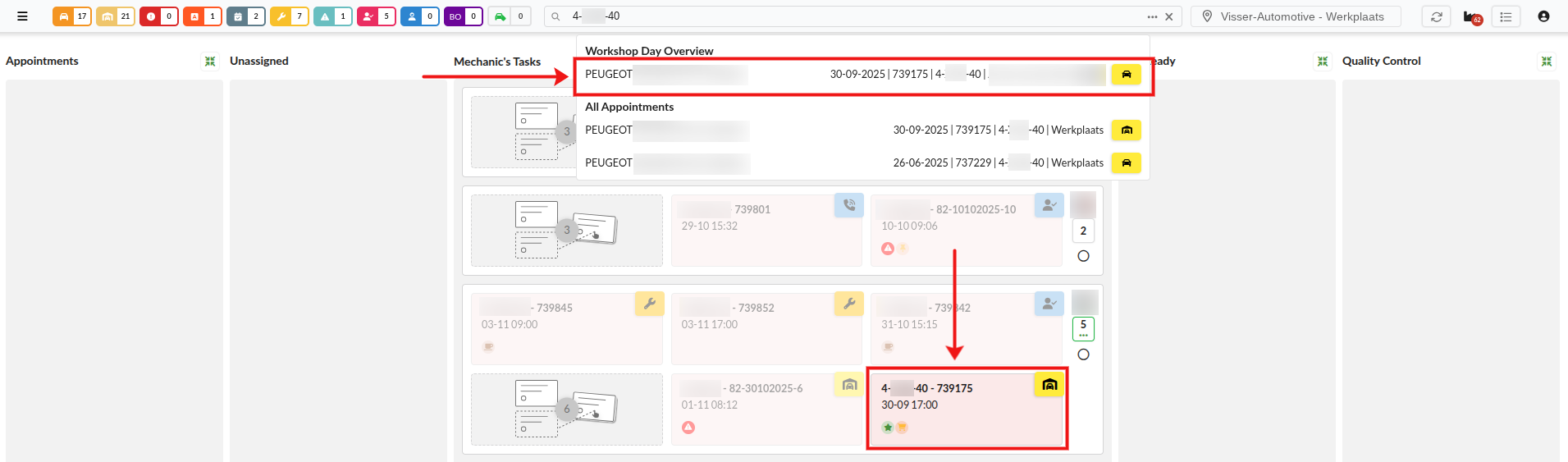

4 | Search bar | A search bar that allows you to search by WO and registration number and the name of the owner or driver. | |
5 | Filter mechanics | Select ‘Hide occupied mechanics’ to hide all mechanics with an assigned work order. Select ‘Hide unoccupied mechanics’ to hide all mechanics without an assigned work order. | |
6 | Filter WOs | Use the filter to filter by all, internal (Internal) and non-internal (WO) work orders. | |
7 | Expand/collapse | Click here to expand or collapse the column. | |
8 | User initials | The initials of the user who reported the car ready. Hover your cursor over it to see the full name. | |
9 | Total WOs | The number of work orders assigned to the respective mechanic. | |
10 | Alphabetical order | Sort the names of mechanics in ascending (A-Z) or descending (Z-A) order. | |
11 | Empty slot | In this slot, you can drag and drop work orders. | |
12 | Absentee list | A list showing the names of mechanics who are absent. | |
13 | Pin | Click this to pin the respective mechanic to the top of the list. | |
14 | Filter car brands | Clicking on this will bring up a dropdown that allows you to filter by car brands. |
Columns
Appointments
This column lists new WOs that have not yet been checked in. WOs are listed in ascending order by date and time, from old to new.
Unassigned
This column displays work orders that have not yet been assigned to a mechanic and have the status 'Car in shop'.
Cars must first be checked in through the DMS or Claire before appearing in the 'Unassigned' column.
Drag a workorder by clicking and holding the status icon of a workorder. Then move the mouse to move the workorder.
WOs with ‘Car in shop’ status and a date in the past must be pinned to appear in the day overview.
Mechanic's tasks
This column lists all mechanics. Each mechanic has ten slots, meaning up to ten work orders can be assigned to each mechanic. You can do this by dragging a work order from the 'Unassigned' column to an empty slot.
Additionally, you can unassign a work order from a mechanic by dragging it back to the 'Unassigned' column. You can also reassign a work order by dragging it to another mechanic.
Cars ready
When a WO reaches the ‘Car Ready’ status, it is automatically moved to the ‘Cars Ready’ column. Work orders that were assigned to a mechanic have a circle with the initials of the last assigned mechanic.
If a quality check is in progress, the WO remains in that column until the quality check is completed.
Quality control
When a WO reaches ‘Quality Control’ status, it is automatically moved to the ‘Quality Control’ column.
Hover function
WO number
As soon as you move your cursor/mouse pointer over the WO number, a popup opens with additional information:
1. Planned interventions
* planned time for the intervention (time is imported from DMS CarIt, Autoline ODBC, Autoline Keyloop, Wincar and Incadea)
2. If the intervention has a pin (comment, recall or warranty)
3. Has the intervention been approved by the customer (green check)
4. Has the intervention been repaired by the mechanic (green wrench icon)
Registration number

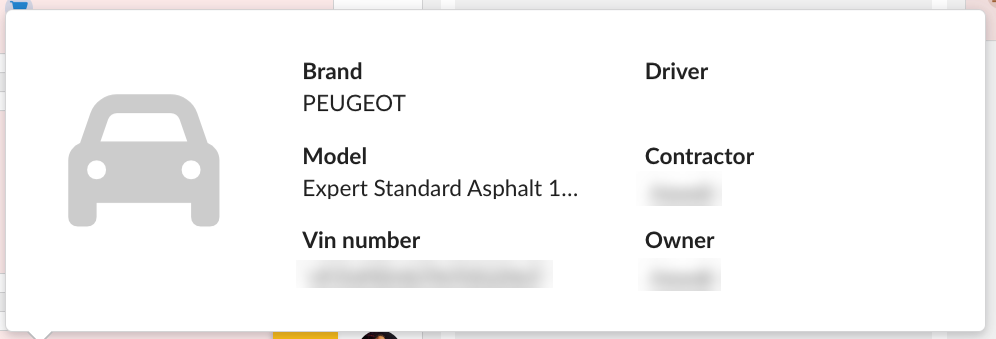

Once you move your cursor over the registration number, a window will appear containing additional information about the car (make, model, etc.).
Tablet

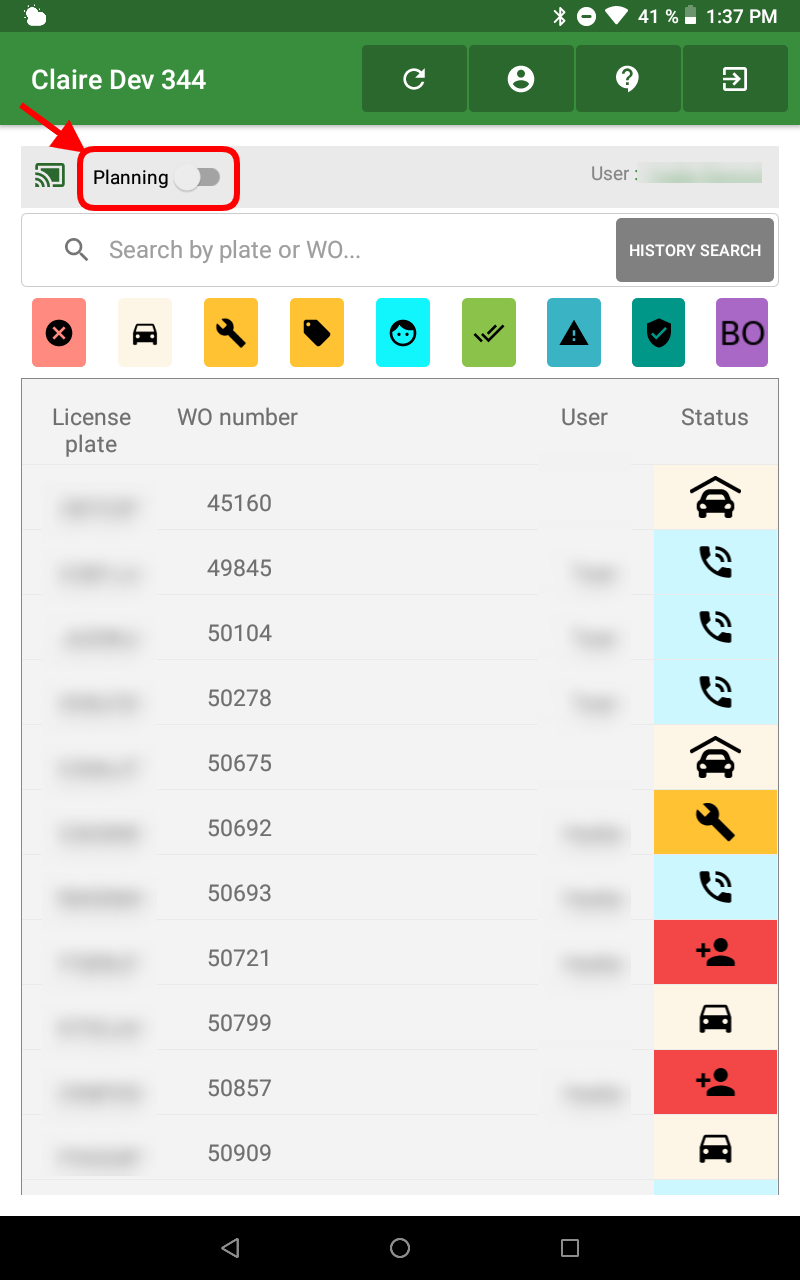

On the tablet, the mechanic has a 'Planning' button. When enabled, it displays only the work orders assigned to him/her in the day overview.
If the status of a work order changes to 'Car out of shop', it is automatically unassigned from the mechanic.
When a mechanic starts a new inspection on a pending work order, it is automatically assigned to them in the 'Mechanic's Tasks' column.
Additional options
Assign to mechanic on check started
Each time a mechanic starts a new check on a work order, it is automatically moved to the first slot under their name.
Assign to mechanic when intervention repaired
When a mechanic performs a 'Car Ready' check and marks an intervention as repaired, the work order is automatically moved to the first slot under their name.
These options are not enabled by default. Please contact support@claireit.eu to activate these options.
